Ikea DIODER schematic

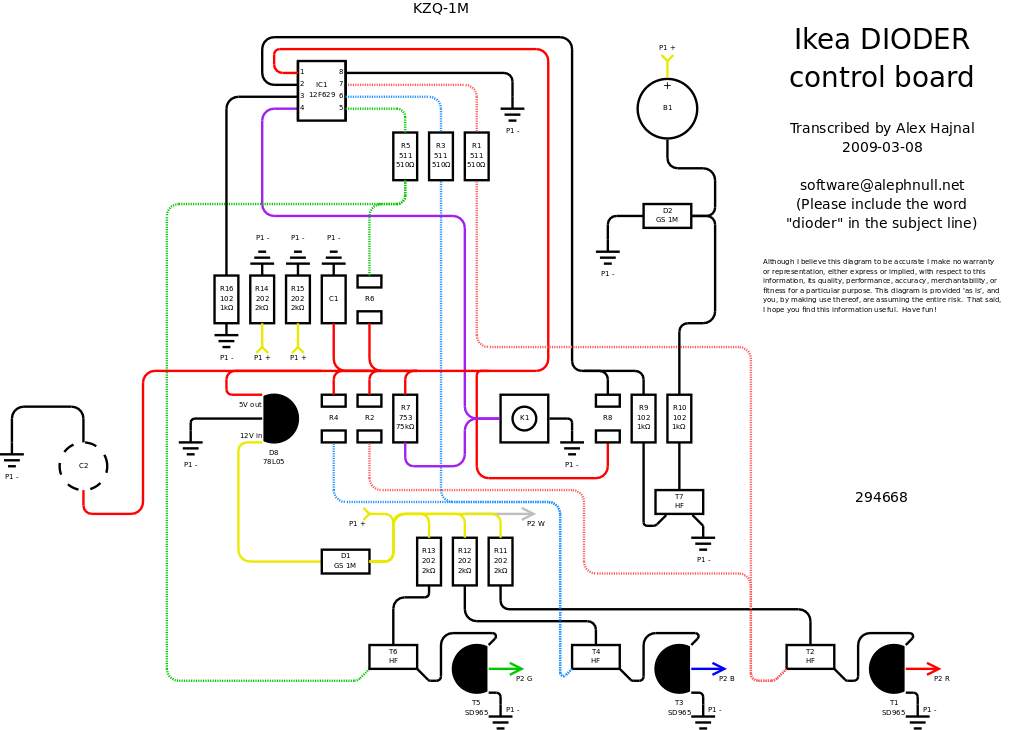

This is a schematic of the controller cicuit board for the Ikea DIODER LED lights.

You might also be interested in a dimmer circuit or a microcontroller-based multi-channel dimmer (offsite link).

Comments are welcome, see the email link at the bottom of the page.

Click to download:

PNG PDF DIA

Although I believe this diagram to be accurate I make no warranty or representation, either express or implied, with respect to this information, its quality, performance, accuracy, merchantability, or fitness for a particular purpose. This diagram is provided 'as is', and you, by making use thereof, are assuming the entire risk. That said, I hope you find this information useful. Have fun!
